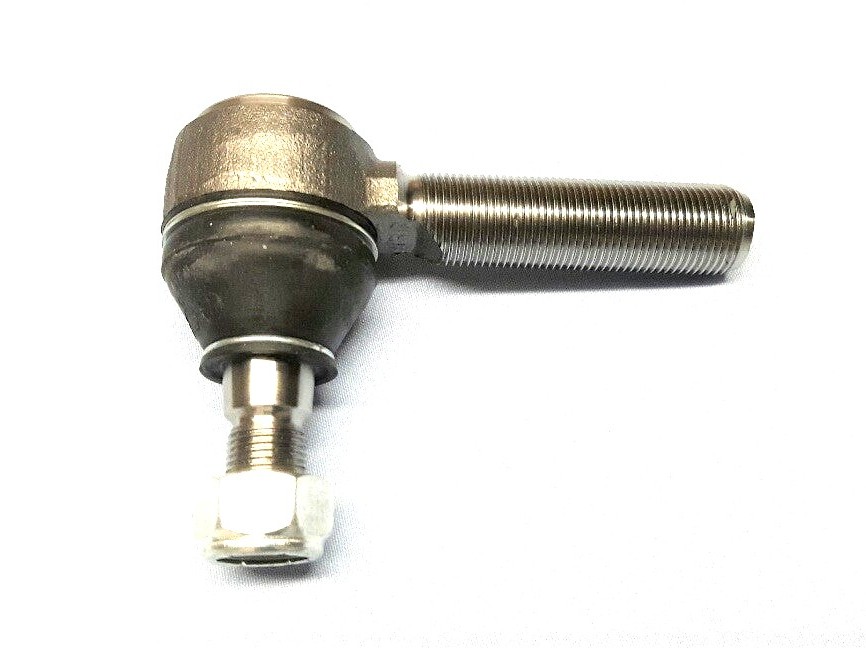

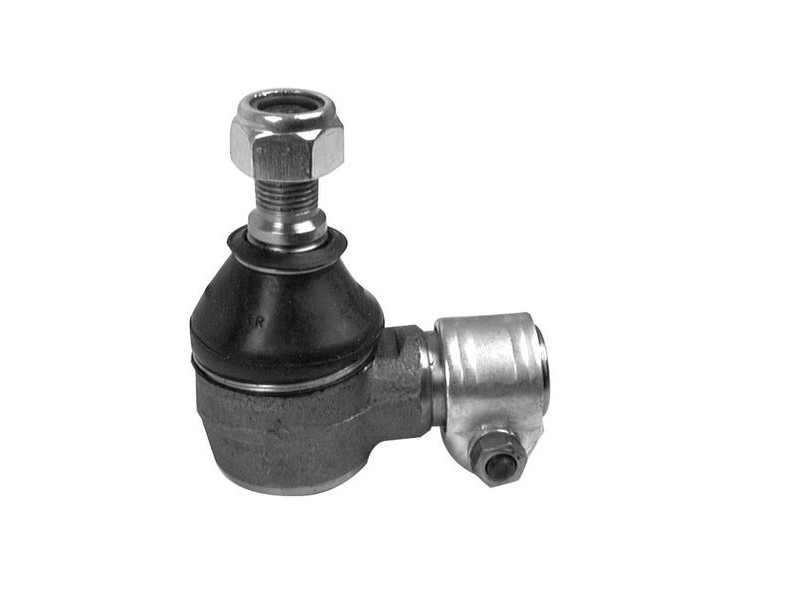

Kugelgelenk - Spurgelenk

Spurgelenk - Kugelgelenk

Passend für

Massey Ferguson:
65,
134, 135, 135 US Built, 150, 154, 154-4, 154S, 164, 165, 165 US Built, 168, 174, 174S, 175, 175 US Built, 178, 184, 184-4, 184S, 185, 188, 194, 194S, 1007,
20, 2135, 2205, 2210, 2220, 2225, 2230, 2235,
233, 234, 234S, 250, 253, 254, 254-4, 254S, 263, 264, 265, 273, 274, 274A, 274-4, 274S, 274SK, 275, 283, 284, 285 (FR), 290, 293, 294, 294-4,
333, 334, 35 US Built, 353, 353LX, 353S, 354, 354S, 363, 363LX, 363S, 364, 364S, 373, 373LX, 373S, 374, 374S, 375E Brazilian, 377, 383, 383LX, 383S, 384, 384S, 387, 390E Brazilian, 393, 393LX, 393S, 394, 394H, 394S, 397, 397T,
50, 50D, 50E, 50H, 50HX, 510, 520, 525, 530, 530S, 560, 565, 575, 590,
60H, 620, 625, 65 US Built, 660 Brazilian, 670, 675, 690, 698, 699,
765,
810, 820, 825, 830, 835, 840

OEM  Referenz Nr.
182534 V91, 1821234 V91, 1821234 M92, 182534 M91, 1821234 M91, 886800, 881714 M92, 847451 M91, 884701 M91, 884701 M92, 185334 M91, 881717 M91, 847424, 828233, 960220,

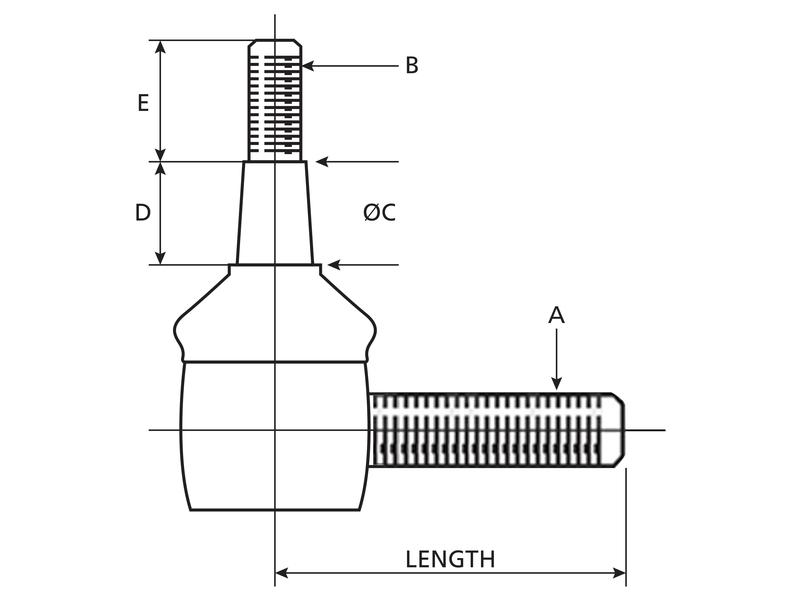

Gewinde - TA1 13/16" - 16 UNS RH
L1 (mm) 105
Kegel (mm) 17.5 - 19,1
Gewinde - TA2 M16x1.5 RH
L2 (mm) 73
H1 (mm) 84
H2 (mm) 68
